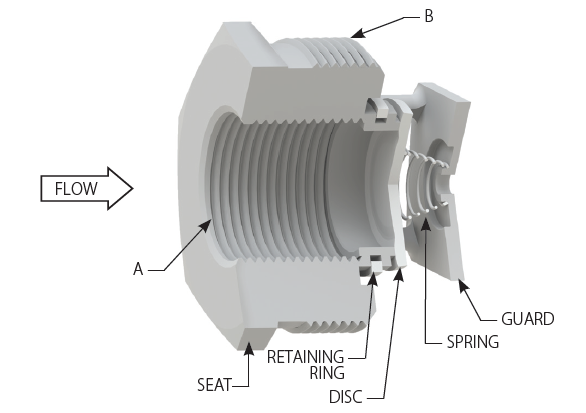

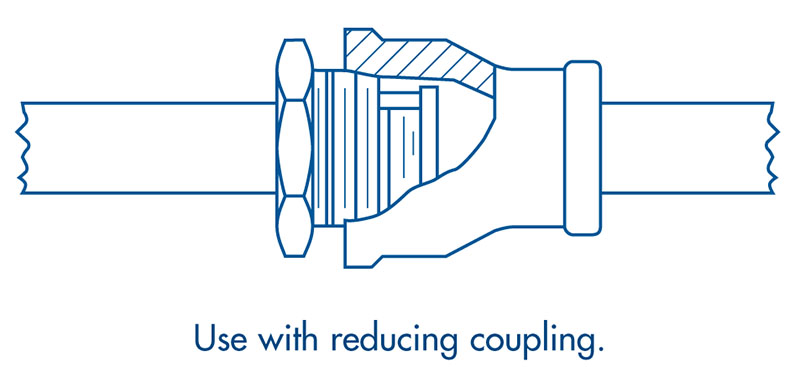

The DFT Basic-Check Valve is a versatile all-purpose, non-slam valve that provides reliable, low-maintenance service for a wide range of liquids, steam and gases at various pressure/temperature combinations. The valve consists of a guard cage, spring, valve disc, retaining ring and seat. It can be combined with pipe fittings such as reducing couplings, drain elbows, etc. to form a complete check valve unit ideally suited for a broad range of pipeline applications or incorporated into machinery for OEM applications. The metal-to-metal sealing area of the Basic-Check valve’s disc and seat is precision-lapped, providing very tight shutoff of gas, steam and liquid. If bubble-tight shutoff is required, optional resilient soft seats are available.
Standard Features:
- 1/4" to 2 1/2" Line Size
- 450 to 6000 CWP
- Threaded Ends
- Stainless Steel Construction
- Spring-Assisted Silent Closing
- Horizontal or Vertical Installation
- Tight Shutoff - Lapped Disc & Seat
- Easy Maintenance
