3/4" 750 CWP DFT SCV Check Valve, A351 CF8M, 316SS Trim, X750 Spring, Zelon Body Seal, FNPT Ends (Old Durabla 8368)

¾" 750 CWP DFT SCV Check Valve, A351 CF8M, 316 SS Trim, X750 Spring, Zelon Body Seal, FNPT Ends (Old Durabla 8368)

3/4" 750 CWP DFT SCV Check Valve, A351 CF8M, 316SS Trim, X750 Spring, Zelon Body Seal, FNPT Ends (Old Durabla 8368)

835D7B4A5

$ 153.00 153.0 USD $ 153.00

$ 153.00

This combination does not exist.

Add to cart Buy now

- Series: SCV®
- Size: 0.75 in
- ASME CLASS: 300
- Cold Working Pressure: 750 psig
- Working Steam Pressure: 510 psig

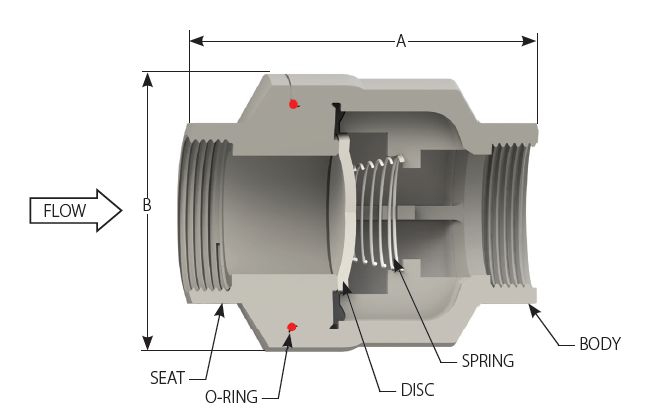

- Dimension A: 3.00 in
- Dimension B: 2.33 in
- Weight: 1.5 lb
- Cracking Pressure CP: 0.24 psig / 0.017 bar
- Trim: 316 SS
- Temperature Rating: 37 to 470 ºF or 2.78 to 243.33 ºC
- B (Dia.): 2.33 in
- ENDS: NPT (Threaded)
- Cv: 13
- Other: API PED
- Valve Type: Check Valve
