1.25" 750 CWP DFT SCV Check Valve, A351 CF8M, 316SS Trim, X750 Spring, Zelon Body Seal, FNPT Ends (Old Durabla 8371)

1¼" 750 CWP DFT SCV Check Valve, A351 CF8M, 316SS Trim, X750 Spring, Zelon Body Seal, FNPT Ends (Old Durabla 8371)

1.25" 750 CWP DFT SCV Check Valve, A351 CF8M, 316SS Trim, X750 Spring, Zelon Body Seal, FNPT Ends (Old Durabla 8371)

835F7B4A5

$ 261.00 261.0 USD $ 261.00

$ 261.00

This combination does not exist.

Add to cart Buy now

- Series: SCV®
- Size: 1.25 in
- ASME CLASS: 300
- Cold Working Pressure: 750 psig
- Working Steam Pressure: 510 psig

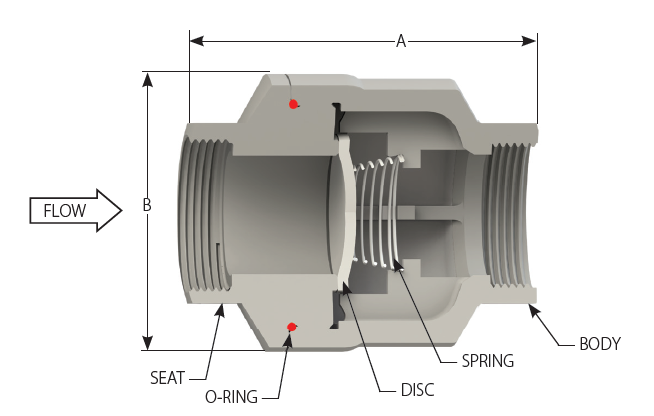

- Dimension A: 3.85 in
- Dimension B: 3.06 in
- Weight: 3.9 lb
- Cracking Pressure CP: 0.28 psig / 0.019 bar
- Trim: 316 SS
- Temperature Rating: 37 to 470 ºF or 2.78 to 243.33 ºC
- B (Dia.): 3.06 in
- ENDS: NPT (Threaded)
- Cv: 39
- Other: API PED
- Valve Type: Check Valve
