1.5" 750 CWP DFT SCV Check Valve, A351 CF8M, 316SS Trim, X750 Spring, Zelon Body Seal, FNPT Ends (Old Durabla 8373)

1½" 750 CWP DFT SCV CHECK VALVE, A351 CF8M, 316 SS TRIM, X750 SPRING, ZELON BODY SEAL, FNPT ENDS | DFT

1.5" 750 CWP DFT SCV Check Valve, A351 CF8M, 316SS Trim, X750 Spring, Zelon Body Seal, FNPT Ends (Old Durabla 8373)

835G7B4A5

$ 321.00 321.0 USD $ 321.00

$ 321.00

This combination does not exist.

Add to cart Buy now

- Series: SCV®
- Size: 1.50 in
- ASME CLASS: 300
- Cold Working Pressure: 750 psig
- Working Steam Pressure: 510 psig

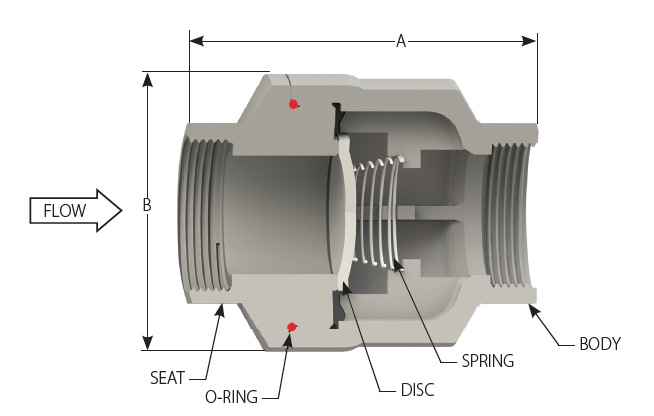

- Dimension A: 4.75 in
- Dimension B: 3.44 in
- Weight: 4.7 lb
- Cracking Pressure CP: 0.24 psig / 0.017 bar
- Trim: 316 SS
- Temperature Rating: 37 to 470 ºF or 2.78 to 243.33 ºC
- B (Dia.): 3.44 in
- ENDS: NPT (Threaded)
- Cv: 54
- Other: API PED
- Valve Type: Check Valve
